Board swapping

I took the original FT101 and put it back on the bench.  I put in the known working Power supply board.  Then I swapped out the ALC board with the second one.
Woohoo!  This fixed the ALC maxed out problem.  When looking at the board I did notice that one of the transistors had been replaced.  So maybe the replacement one is the wrong part...

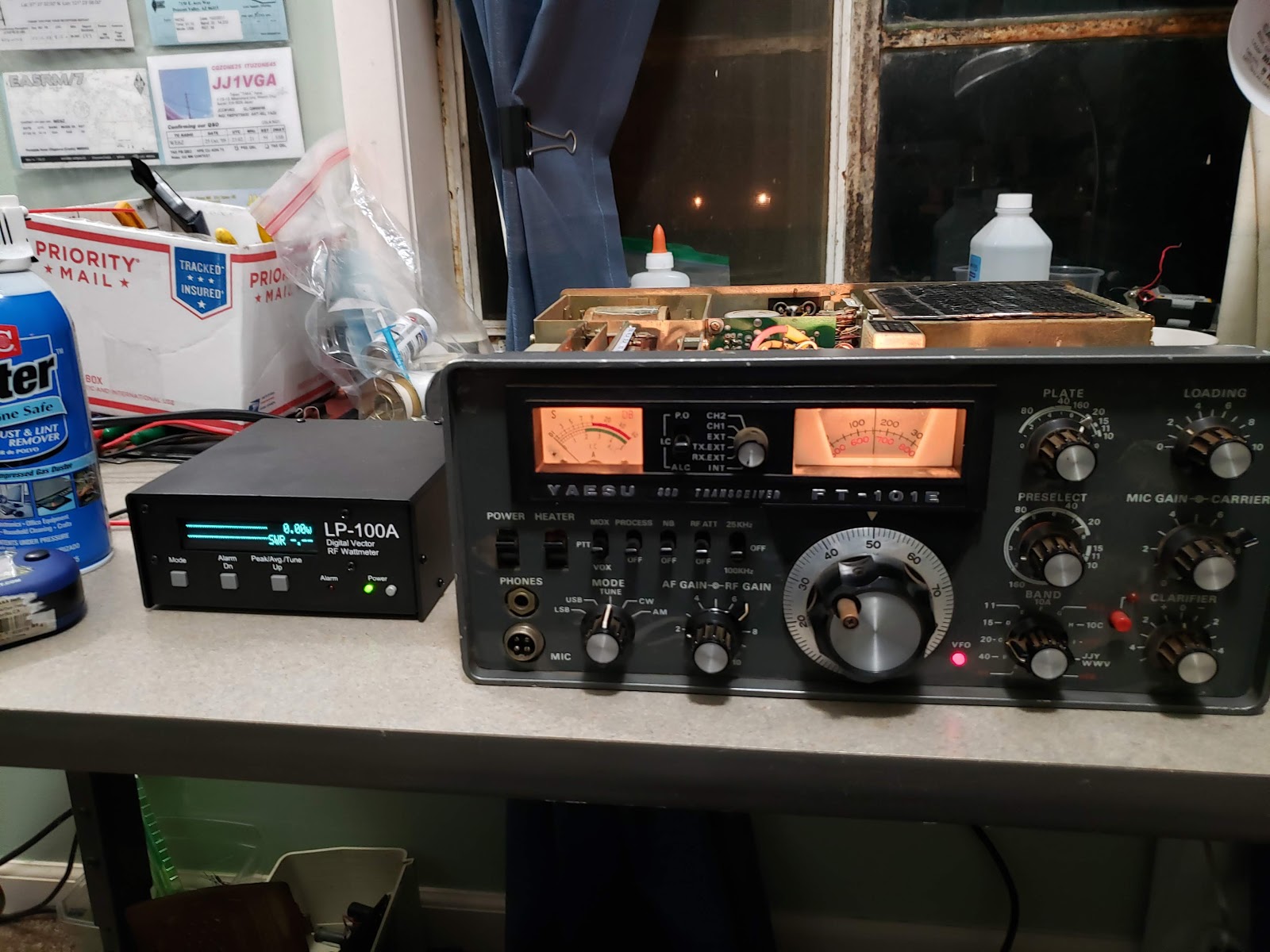

Anyway after that I adjusted the bias, adjusted the ALC and did some transmit tests.

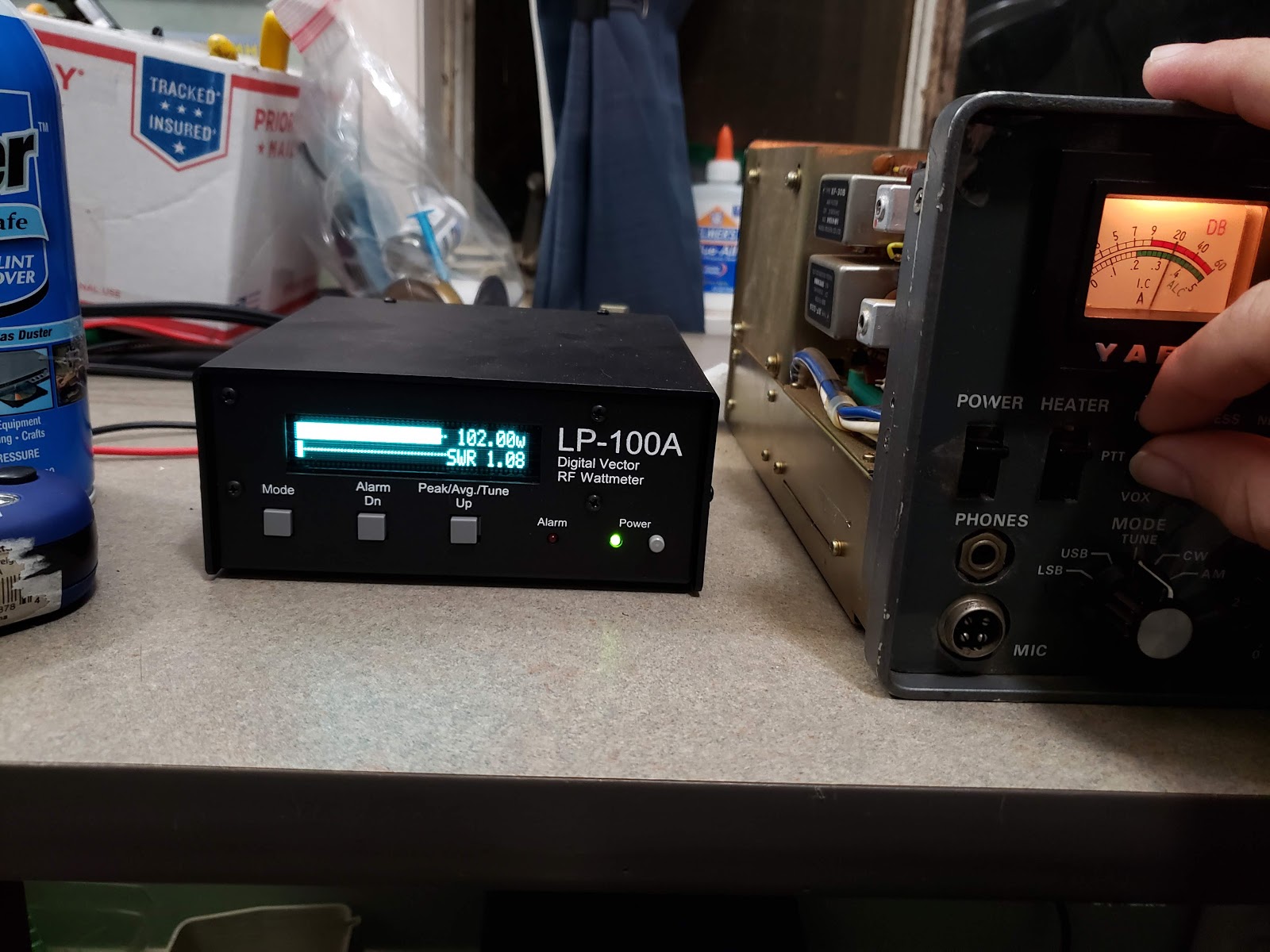

I got over 100 watts on 80, 40, 20, and 15.  I think I got 75 watts on 11m.  And only 35 watts on 10 meters.  Also only got 25 or 35 watts on 160 meters.
This radio also had a problem with the PO position.  It always read too high/off scale.  I did find the adjustment and was able to adjust this down to the correct level.

So it is 95% working.  Next I'll have to work on a microphone.
