More TX :D

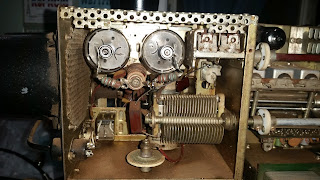

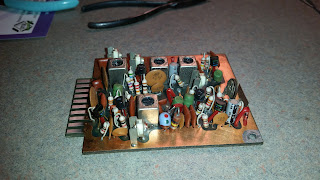

Got some more work done on the second FT-101E today.  I installed one of my new 12BY7A tubes that I got.  It tested 7000/6500, so it is really strong.  I dug out the matched pair of the Silvania tubes that I had gotten with the radio and installed them.  I also changed out the neutralization capacitor.  I also recapped the noise blanker board and RF board.  I also replaced a bad capacitor on the back of the mic jack.
I let it warm up for a while, then did a test of the transmitter.  I set the bias current to around 60mA.  And tuned it up into a dummy load.  I saw right at 100 watts on 20 meters.
I call that a success!
The radio has a very hot receiver.
